Tasks

Changing task type

In GanttPRO Gantt diagram maker, you can change a task type after adding it. In particular, it is possible to:

Indent and Outdent

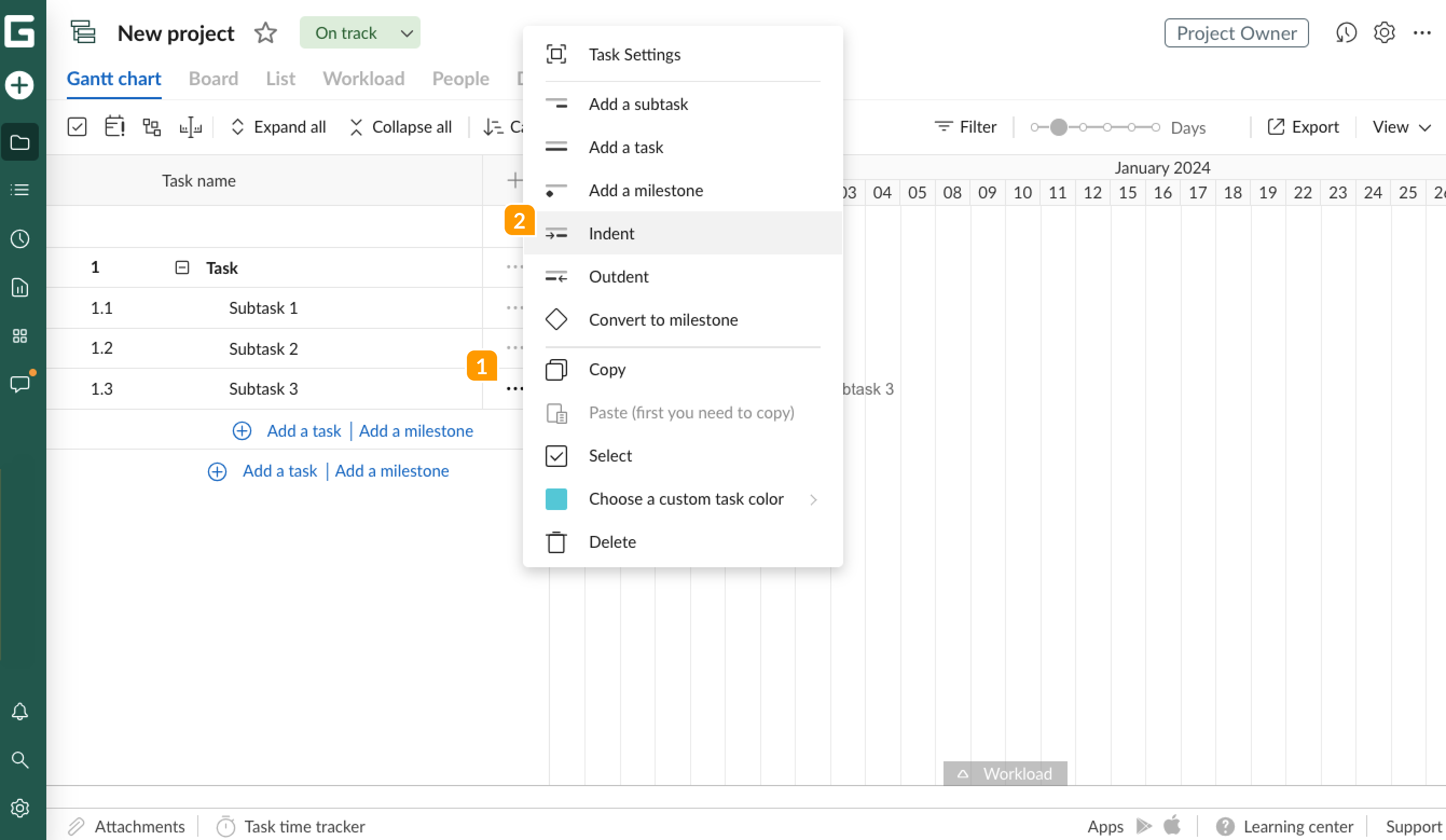

Click on the three-dots button on the right side of the task name 1 and select Indent 2. This will convert a task into a subtask of a previous one. The task you indent will go down one level in the WBS hierarchy.

Tasks-Convert task-Indent.png

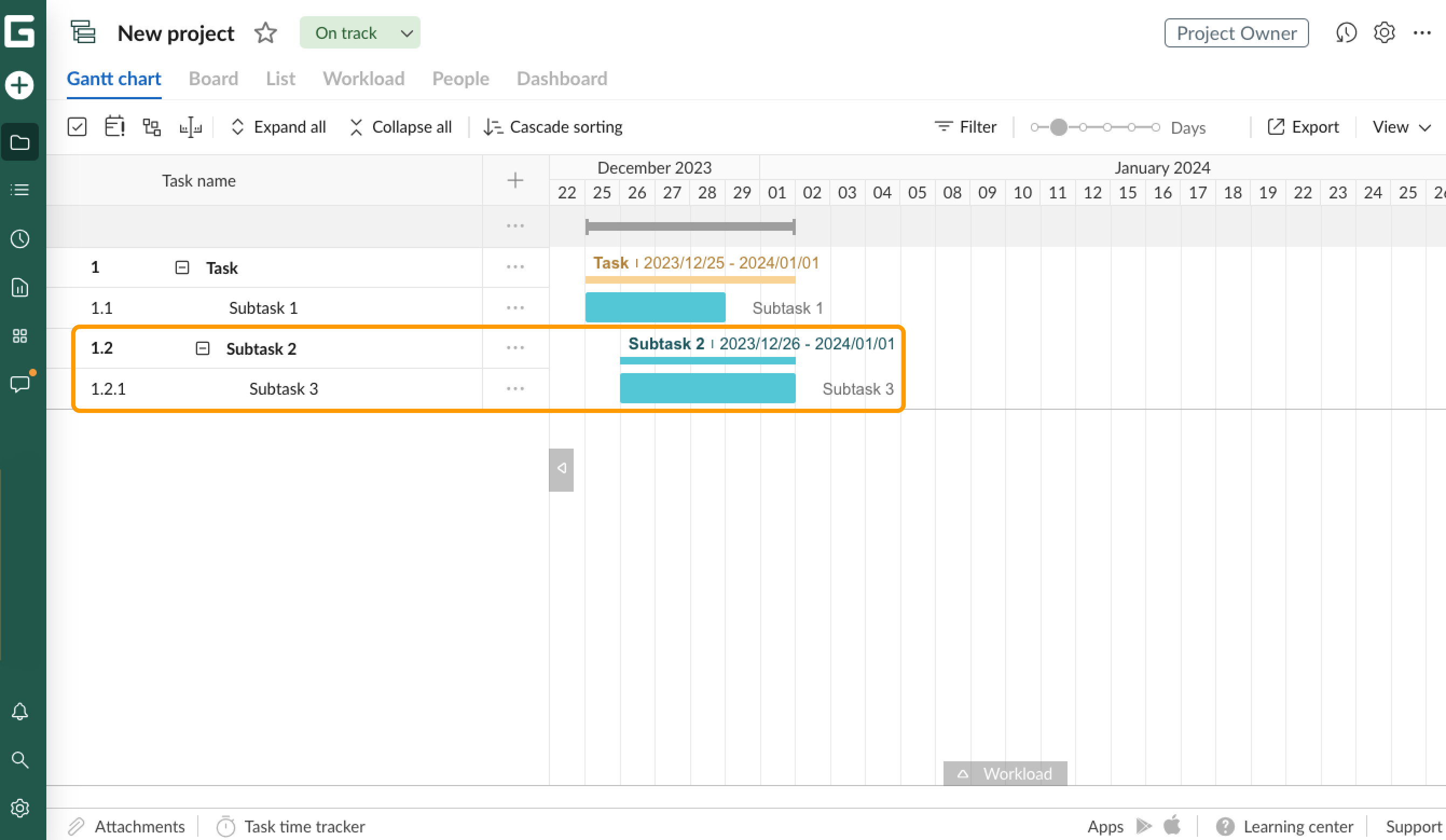

In this example, we have applied Indent to a Subtask 3. As a result, it has been converted into a subtask to a Subtask 2.

Subtask 2 has become a summary task.

Tasks-Convert task-Indent-Result.png

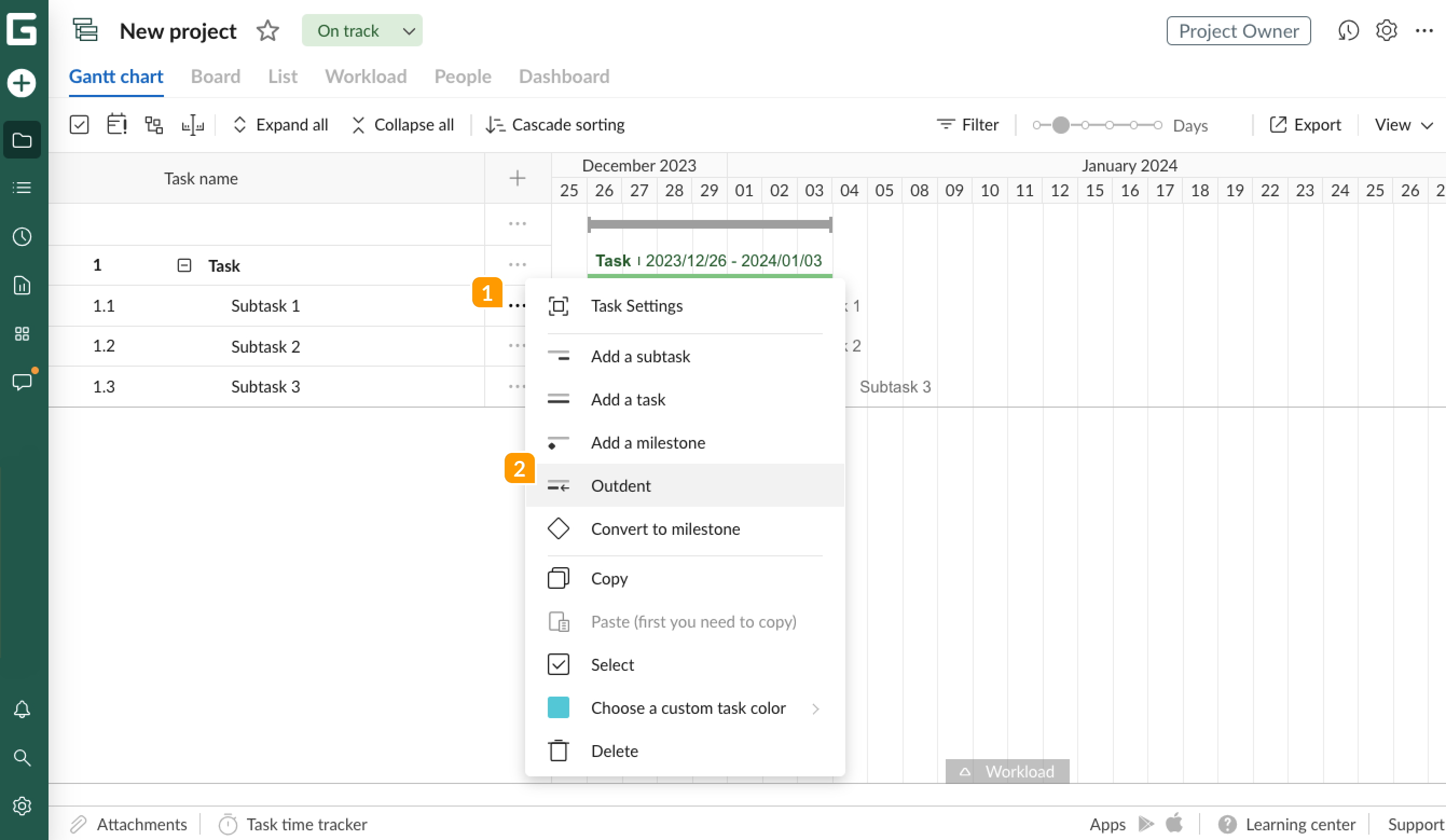

For the reverse process, to convert a subtask into a task, click on the three-dots button on the right side of the task name 1 and select Outdent 2. The task you outdent will go up one level in the WBS hierarchy.

Tasks-Convert task-Outdent.png

In this example, we have applied Outdent to a Subtask 1, and as a result, it has been converted into a task and has gone up one level in the WBS hierarchy.

Tasks-Convert task-Outdent-Result.png
Convert a task to a milestone

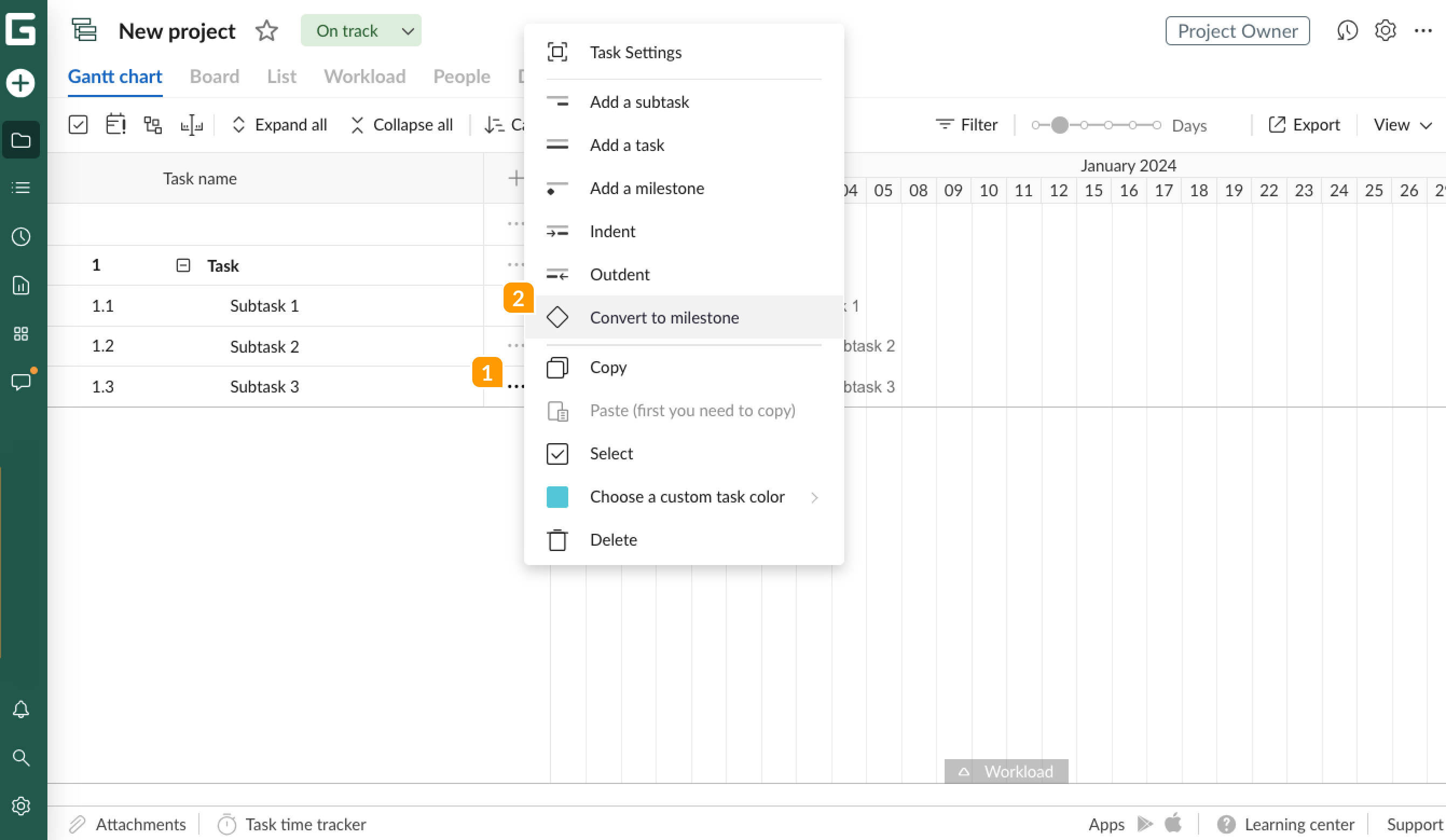

Click on the three-dots button 1 on the right side of the task name and select Convert to milestone 2.

Tasks-Convert into milestone.png

To revert a milestone into a task, select Convert to task. You can also change a task into a milestone through the Task settings.

Drag and drop tasks

Change task type by dragging it on the project grid and dropping it where needed. Depending on the placement, you can convert a task into a summary task or subtask, or simply adjust its order in the WBS.
